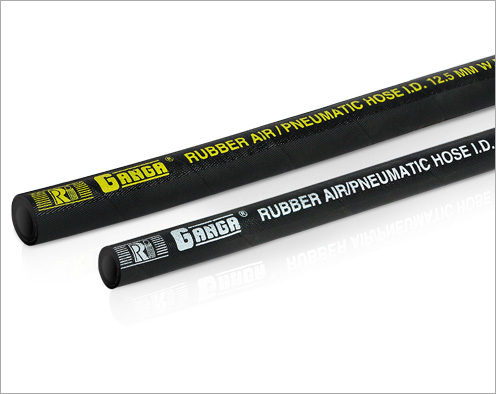

Recommended for use with air compressors and other civil construction sites & Industrial applications.
Uniform in thickness made from a blend of natural & Synthetic Rubber Compound
High Tensile Synthetic Yarn
Natural Modified rubber Abrasion and Ozone Resistant,
Wrap Finish
- 40° to + 70°
Inner - Black & Outer Cover - Black
| Part No. | ID | OD | Maximum Working Presure | Minimum Burst Pressure | WT. | Standard Length | |||
|---|---|---|---|---|---|---|---|---|---|
| MM ±.5mm | INCH | MM ± .5mm | PSI | BAR | PSI | BAR | KGS. | MTR. | |
| GAH-613 | 6.0 | 1/4 | 13 | 300 | 20 | 900 | 60 | 0.180 | 50-100 |
| GAH-815 | 8.0 | 5/16 | 15 | 300 | 20 | 900 | 60 | 0.220 | 50-100 |
| GAH-916 | 9.5 | 3/8 | 16.5 | 300 | 20 | 900 | 60 | 0.260 | 50-100 |
| GAH-1220 | 12.5 | 1/2 | 20 | 300 | 20 | 900 | 60 | 0.350 | 50-100 |
| GAH-1627 | 16.0 | 5/8 | 27 | 300 | 20 | 900 | 60 | 0.500 | 50-100 |
| GAH-1929 | 19.0 | 3/4 | 29 | 300 | 20 | 900 | 60 | 0.700 | 50-100 |
| GAH-2536 | 25.0 | 1 | 36 | 300 | 20 | 900 | 60 | 0.900 | 50-100 |
| GAH-3143 | 32.0 | 1.1/4 | 43 | 300 | 20 | 900 | 60 | 1.300 | 40 |
| GAH-3850 | 38.0 | 1.1/2 | 50 | 300 | 20 | 900 | 60 | 1.400 | 40 |
| GAH-5065 | 50.0 | 2 | 65 | 300 | 20 | 900 | 60 | 2.250 | 40 |
